ABS-20-1W 3G signal Repeater/Amplifier/Booster


    Qty.Range(unit) Price(per unit) Discount
    Large Order:
  • 0
  • Quantity:



      Product Details

      Product Description

      The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor magnetism environments, protract cellular battery life and reduce radiation of cellphones.

      Features

      l  High gain, easy installation and operation.

      l  Full-duplex, single-port design, build-in power supply.

      l  Use ALC technology, adjust extent automatically

      l  LED Light Working & Signal Condition Indicators

      l  Big linear power, control intermodulation & saturation stably

      l  Dependability stand by GB6993-86 standard

      l  Compatibility of electromagnetism according with ETS300 609-4

      l  CE and RoHs Approved

      Technique

      Frequency range
      3G,WCDMA (
      2110-2170)

      1920-1980MHz,
      2110-2170MHz

      Gain ( dB)

      Uplink Gp≥55 Downlink Gp≥60

      Export power (Po)

      ≥20dBm

      Pass band ripple

      ≤3dB

      I/O impedance

      50Ω/N connector

      Noise figure

      ≤4dB

      Transmission Delay

      ≤0.5μs

      Ambient temperature

      -10?pan>60?pan>

      Power supply

      AC110240V 4555Hz

      Size

      204×120×37mm

      Reliability

      To the GB6993-86 standard

      Electromagnetic compatibility

      To the ETS300 694-4 standard

      Function

      a) Power supply LED denote
      b) Export power LED denote

      coverage area

      1000 m2

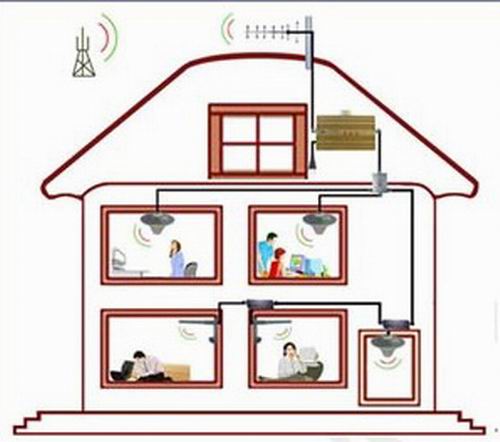

      Installation Approaches

      1. Fix up outdoor antenna reception on housetop and point to signal tower.
      2. Connect outdoor antenna to “outdoor” port in repeater machine through cable.
      3. Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
      4. Plug power adaptor into AC power socket and finish installation.

      Technique Supporting

      1. If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
      2. If cannot call out, please adjust the direction of outdoor antenna.
      3. If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antennas have distance of 20

      Accessories
      Selection Outdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and signal wire use coaxial-cable.

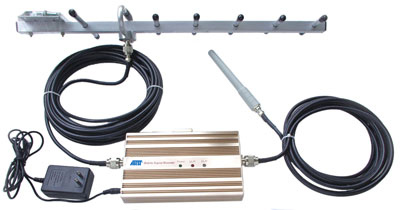

      Packing list
      Main unit 1pc
      Power supply 1pc
      User manual 1pc
